Solid Mapping

With Intelligent Tomography for Pipelines and Vessels

Solid Mapping is a Solution to Measure the Condition of Any Pipe, Regardless of its Condition. In Typical Applications, Pipes May Have Over 50% Deposition, Which Can Hinder Pipeline Productivity and Pose Risks of Unexpected Shutdowns.

Benefits

  1. Works with any media. Especially with high temperatures and pressures and depositing conditions
  2. Extremely easy to install (ask sales for more details).
  3. Robust - Can withstand any pressure and temperature needed
  4. Can be used in any chemical environment based on material selections
  5. Uses Intelligent Tomography Platform providing maximum value from the process data
  6. Hermetically sealed - meaning nothing goes inside and the sensor is long lasting

The Intelligent Ultrasound Tomography is PREDIT’s proprietary technology designed to inspect the internal structure and contents of pipelines with unmatched precision

At PREDIT, we use Intelligent Tomography — A revolutionary concept that maximizes the value of process data by combining advanced tomographic methods with AI and proprietary signal processing. This approach enables deep understanding of process fluids, emulsions, foams, and gases — all within the sensor boundary — using as few as two to eight electrodes.



Two typical pipeline setups where solids either accumulate around the inner wall or settle at the bottom of the pipe

Ultrasound

Tomography

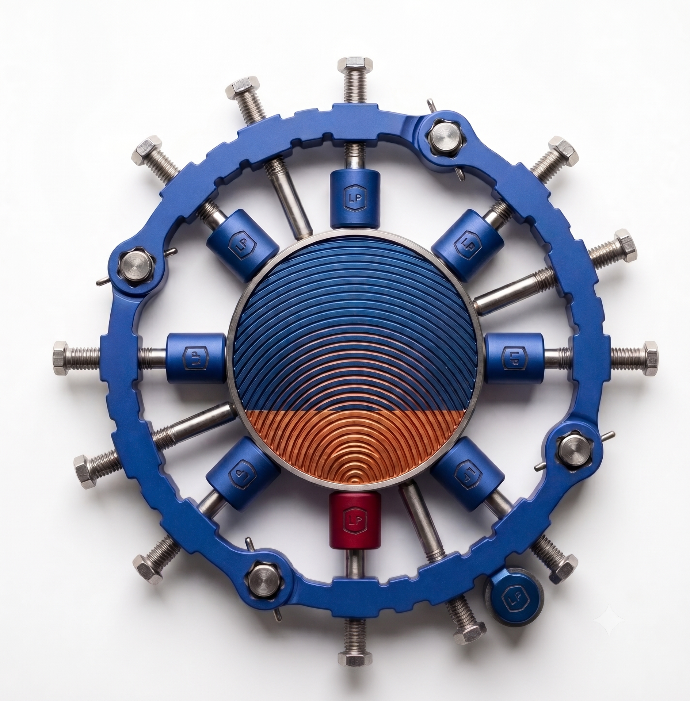

Solid Mapping is a clamp-on tool designed to measure the condition of any pipe, regardless of its condition.


Explore Intelligent Tomography

Materials

The sensor can be manufactured into any machinable material Standard combination are

PEEK + Stainless Steel/Titanium for 16 bar and 90C

PEEK GF + Stainless Steel/Titanium for 32 bar and 90C

UHMWPE + Stainless Steel/Titanium for 8 bar and 90C

Ceramics + Stainless Steel/Titanium for 300 bar and 400C

Power

The system supports flexible power options:

– 17–36 VDC (2.5 A, 2-wire) for wired setups

– 18 V / 5 A battery for mobile or remote applications

For pilot testing, battery power further simplifies installation and enables use in remote or hard-to-access locations.

Battery life varies by usage but typically lasts up to one year. The system has an ultra-low standby current of 1 µA and can be remotely activated via the LoRaWAN network.

Electronics & Mechanics — Engineered for Demanding Industrial Environments

Our electronics are designed and built in-house by PREDIT, ensuring maximum performance and reliability across all applications.

For the mechanical interface, choose between MiniCapsule, ClampOn, or InTouch — each optimized for specific installation needs.

Our team will guide you to the most effective option for your process.

IoT + Connectivity

Multiple systems can be networked and connected to a cloud service via a LoRaWAN connectivity network, significantly reducing the need for traditional automation wiring and making a fast start.

For fixed installations, we offer standard integration interfaces such as 4–20 mA, Modbus TCP/IP, ask for more.

Let’s talk — Discover how PREDIT’s Intelligent Tomography and Cloud services Can Enhance Your Operations.
