Flotation Profiling

With Intelligent Tomography in All Flotation Cells

Stop Guessing, Start Profiling.

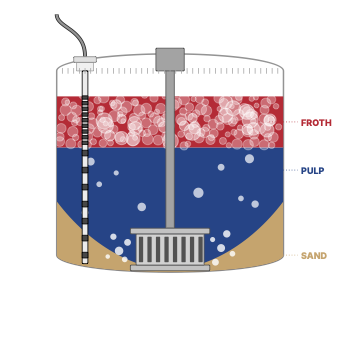

Whether dealing with sticky mineral froth or heavy sand accumulation, LEVEL IQ - FLOT distinctively separates and profiles each layer. PREDIT's technology enables a customized electrode distribution, providing high accuracy in the froth layer with a freely selectable resolution (accuracy >5 mm) while simultaneously measuring sand accumulation with an appropriate resolution. The sensor rod can be securely positioned to measure from the froth overflow weir all the way down to the bottom.


Traditional sensors struggle with thick mineral froth and abrasive slurry. LEVEL IQ - FLOT sees through the froth layer, the water phase, and the accumulating sand at the bottom of your cell to give you absolute control over your separation process. By tracking exact phase interfaces and solids concentration in real-time, you can drastically optimize reagent dosing. Proactively prevent cell sanding and overflowing, all while maximizing your mineral yield and ensuring stable operation.


Key Advantages of Level IQ - FLOT

  • Measure Froth, Water, and Sand accumulation simultaneously with a single multi-point probe.
  • Measures both the upper and lower interfaces of the froth, as well as sand, reliably even in fouled conditions.
  • PREDIT's technology enables a customized electrode distribution, providing high accuracy in the froth layer with a freely selectable resolution (accuracy >5 mm) while simultaneously measuring sand accumulation with an appropriate resolution.
  • Hermetically sealed and highly abrasion-resistant sensor, designed for aggressive slurry and froth conditions.


Compatible Products:

MIRA

MIRA

MIRA IoT and Measurement Unit: The main unit to control Level IQ product series.


View MIRA
